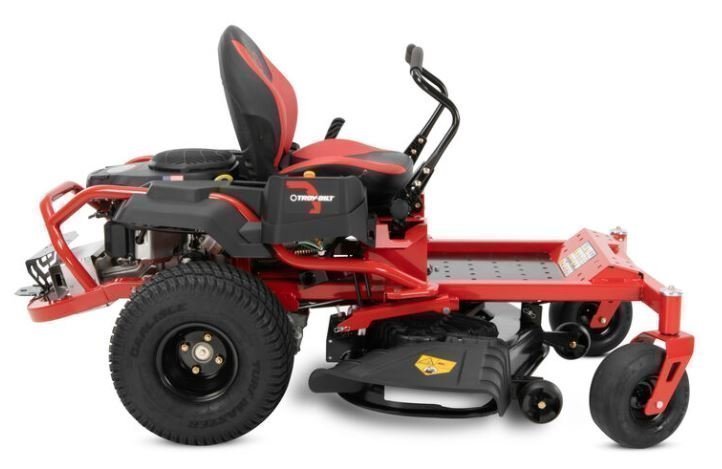

Troy Bilt Mustang Z54 24hp 725cc Kohler Engine 54″ Z-Turn Mower #17ARFACWA66 - Image 1

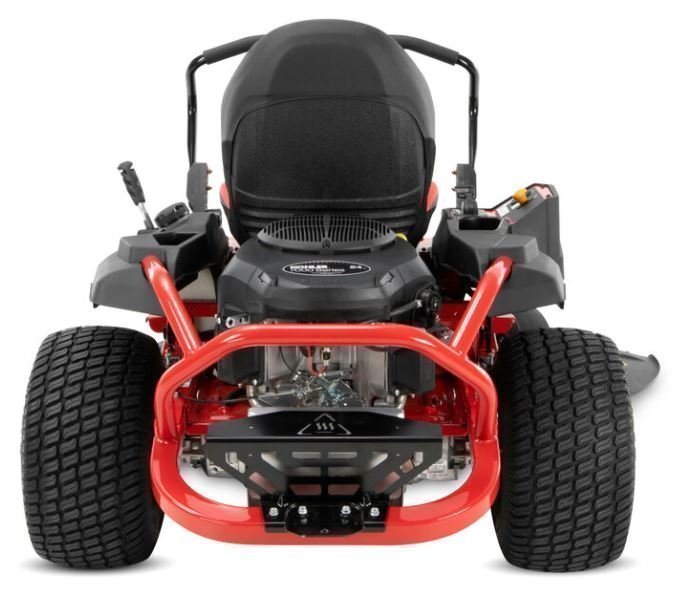

Troy Bilt Mustang Z54 24hp 725cc Kohler Engine 54″ Z-Turn Mower #17ARFACWA66 - Image 2

Click to enlarge

Troy Bilt Mustang Z54 24hp 725cc Kohler Engine 54″ Z-Turn Mower #17ARFACWA66

Name: Troy Bilt Mustang Z54 24hp 725cc Kohler Engine 54″ Z-Turn Mower #17ARFACWA66
SKU: 5289
Price: 687.74 USD
Availability: InStock

$687.74

50 in stock

Compare

Add to wishlist

SKU: 5289 Category: Push & Self-Propelled Mowers

Description
Shipping and Delivery

Description

Mow large areas faster with the zero-turn capability of the Mustang Z54. The heavy-duty, fully welded frame provides dependable performance in rugged conditions and is backed by a limited lifetime warranty. You’ll get more comfort and support with the high back seat and padded lap bars.

Powerful 24HP twin-cylinder Kohler 7000 Series engine delivers quieter, more balanced performance with less vibration
Heavy-duty, full length, fully welded, 2″ tubular frame is designed to absorb impact, provide maximum stability and covered by a limited lifetime warranty
Large 54″ steel cutting deck reduces mowing time in large areas and the anti-scalp deck wheels prevent turf damage and deliver a clean, even cut
Dual hydrostatic transmission delivers true zero turn performance for quicker mow times and improved maneuverability
Ride in more comfort and reduced vibration with the high-back seat and foam grip steering controls

Engine

Engine BrandKohler®
Engine Model7000 Series
Engine Model NumberKT735
Engine Displacement725cc
Engine Output24HP
Starter TypeElectric
Fuel Tank Capacity3.5 gal. US (13.25 L)
CylindersTwin
Engine StartIgnition Key
Engine Oil Capacity2.0 qt. US (1.89 L)
LubricationFully pressurized
Charging System12 amp regulated
Fuel GaugeNo
GovernorMechanical
ChokeChoke-a-matic
Air FilterDual element
Oil FilterYes
Fuel DeliveryCarburetor

Battery

Battery230 CCA
Battery TypeStandard Lead-Acid
Battery Voltage12V

Drive System

TransmissionHydro-Gear EZT 2200
Forward Speed7 MPH
Reverse Speed2.5 MPH
Drive SystemHydrostatic

Cutting Deck

Deck Cutting Width54 in
Deck WashYes
Deck Material12-gauge steel
Deck Engagement (PTO)Electric
Deck ConstructionStamped
Blade(s)Three
Deck LiftFoot pedal
Cutting Height Range1″ – 4.5″
Anti-ScalpingThree gauge wheels
Deck Positions8

Warranty

Warranty3-year limited residential
Frame WarrantyLifetime Limited
Deck Shell Warranty3-year limited
Commercial WarrantyNo

Chassis

Frame2″ x 2″ tubular steel
Turning Radius0°
ROPSNo
Rear Tow HitchYes
Corrosion ProtectionYes

Controls

Cruise ControlNo
Steering ControlLap Bars

Comfort

Seat Type18″ high back
ArmrestsNo
Seat AdjustmentKnob

Wheels

Rear Tires20″x 10″- 8″
Front Tires11″x 6″-5″

Additional Specifications

Hour MeterNo
Headlight(s)No
Cup HolderYes
Operator Presence SystemYes
Parking BrakeLap Bar Integrated
Model Number17ARFACWA66
