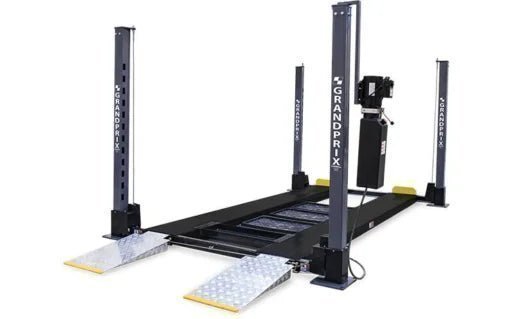

GP-9F Package (5175254) 9,000-lb. Capacity

Description

• BendPak’s proven legacy gives you an edge in performance, service and cost of ownership.
• Designed to be fastened to the floor or free-standing.
• Comes standard with caster kit, drip trays, mobile jack tray, aluminum approach ramps, and hardened steel tire stops.
• Boxed-steel columns are made from structural 4.75″ x 4.75″ welded steel tubing.
• Columns feature 12″ x 12″ baseplates 5/8″ thick.
• Manual dead bolt locks are reliable and safe and are machined directly into the boxed-steel columns.
• 3/4″ thick steel safety locks are spring loaded for automatic and solid engagement.
• 13 positive locking positions are spaced every 4 inches.
• Secondary slack-cable lock system assures instant back-up safety lock engagement in the event of a cable failure.
• Exterior steel sleeves with UHMV slides surround each column to ensure positive contact and containment.
• ¾” thick safety locks are securely trapped by the full-perimeter cross tube sleeves and can’t become dislodged or disengaged.
• Welded-steel runways feature utility rail for jack tray and drip trays and other accessories.
• Runways are welded and boxed for extra strength.
• Built-in flow restriction integrated into the hydraulic cylinder to prevent free-fall.
• Oversize baseplates and pull-perimeter cross tube sleeves reduce lateral movement and sway when lift is free-standing.
• Low-profile runways are only 5″ high to accommodate low ride-height vehicles.
• Hardened steel safety lock linkages use 3/8″ molded carbon steel rod ends to reduce flex and twist to ensure positive locking and smooth operation.
• Precision, reinforced rod ends with spherical bearings are protective coated for corrosion resistance and are designed to provide low friction and high wear resistance.
• 5/8″ thick top caps.
• Sheave axles feature hardened steel collars and snap rings.
• Pull out tire stops on both ends of the lift that allows drive through capability.
• Stainless steel lifting cables are rated to handle over 14,000 lbs. each.
• Cable keepers assures cables remain safely secure to the sheaves.
• Pre-assembled cables simplifies installation.
• 36″ aluminum approach ramps are gusseted to eliminate flex and bending.
• Non-marring heavy-duty poly caster wheels will not damages painted floor surfaces.
• Durable powder coat finish.
• 3/4″ runway bolts provide positive attachment with increased safety factor.
• Operator controls are simple to use, well-placed and ergonomically advanced to reduce operator strain and fatigue and increase safety.
• Electric/hydraulic power system.
• Single hydraulic cylinder underneath runway.
• Optional full-length aluminum platforms can be added to easily store lawnmowers, ATVs, jet skis or motorcycles.
