Big Tex Tandem Axle Vanguard Trailer | 70TV

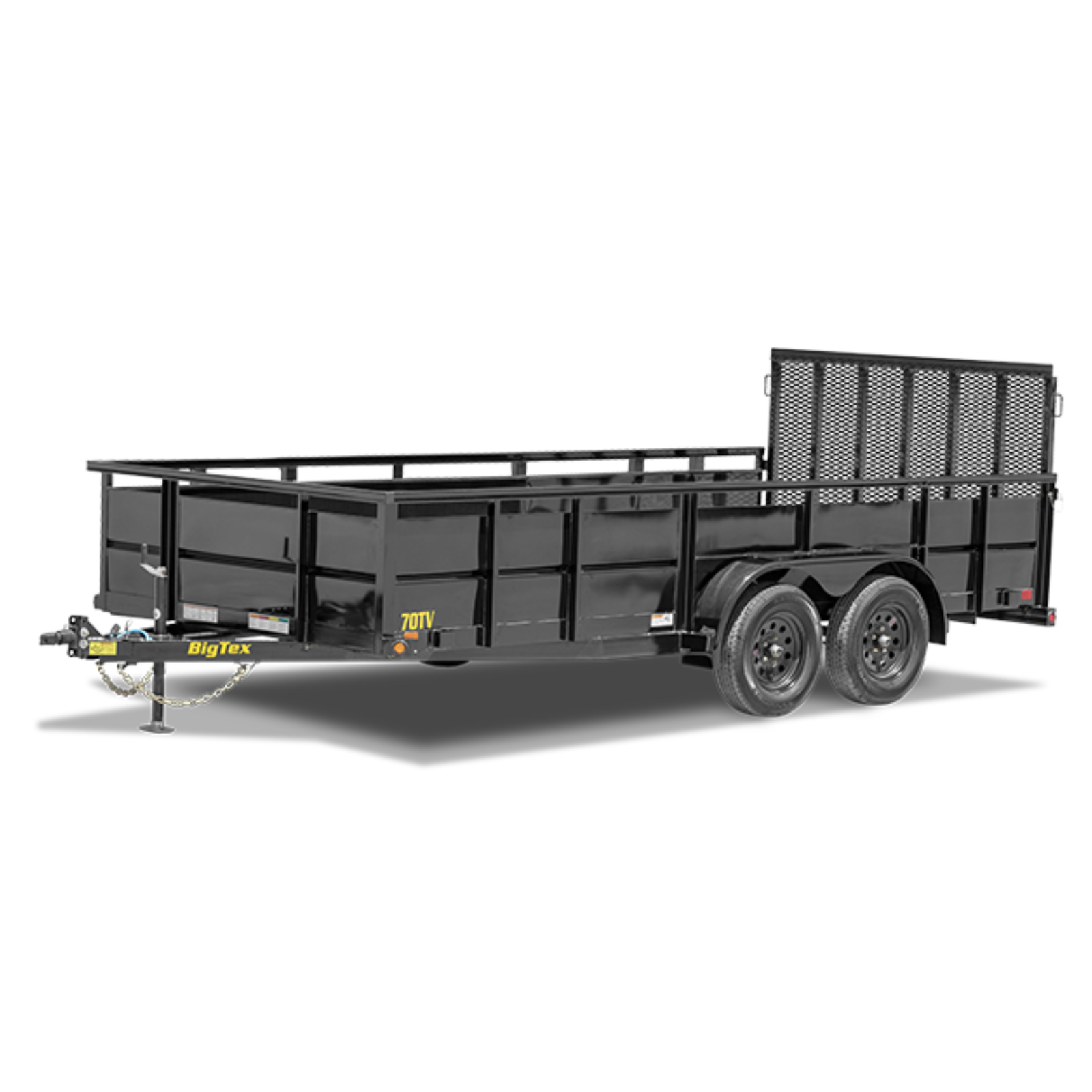

Get more cargo space with the extra wide 70TV Tandem Axle Vanguard Trailer. An 83’’ wide trailer that’s equipped with higher, v-crimped steel sides for maximum strength, durability, and protection, the 70TV features reliable steel-belted radial tires that keep you on the road safely. It’s up to the task to haul lawn and garden equipment for heavy-duty landscaping jobs with its 7,000 lbs G.V.W.R. Built for the long haul, this rugged trailer is the perfect fit for professional landscapers and homeowners who put in long hours to look after their lawn and garden. Standard Feature Available Options Axles 3,500# Premium, Cambered Axle with Quick-Lubricating Hubs Brakes Forward Self Adjusting Brakes on Front Axle and Flanges on the Rear Axle Electric Brakes on 2nd Axle Suspension Multi-Leaf Slipper Spring w/ Equalizer Coupler 2″ Demco EZ- Latch 2-5/16” Forged Coupler 2-5/16” Stamped Coupler Safety Chains 1/4″ Grd. 30 w/ Safety Latch Hook (2 ea) Jack 2,000# Top Wind, Set-Back, Sand Foot Jack 8,000# Drop-Leg Jack 2,000# Fold-Up Jack Frame 4″ x 3″ x 1/4″ Angle Cross-Members 3” x 2” x 3/16” Angle Floor Treated Pine or Douglas Fir Blackwood Pro Rubber Infused Lumber Floor (per linear foot) 1/8” Diamond Plate Steel Floor (Per Square Foot) Fenders 9″ x 72″ 16 Ga. Tear Drop Fender Ramps 4′ Heavy Duty Integrated Ramp Gate w/ Gas Shock Assist 4′ Tall Rear Ramp Gate w/ Coil Spring Assist 5′ Tall Rear Ramp Gate w/ Coil Spring Assist Stake Pockets (4) Stake Pockets on Outside Frame Additional Stake Pockets (Each) Trailer Plug 7-Way RV Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance Tires ST205/75 R-15 Load Range C Tire Upgrade (ST225/75R-15 LR-D) Bolt Pattern 5 Bolt Spare Mount Side Spare Tire Mount Spare Tire Spare Tire (ST205/75R-15 LR-C) Spare Tire (ST225/75R-15 LR-D) Paint Type Professional Finish w/ Primer Standard Paint Color Black Red Grey White Desert Tan Jet Blue Slime Green Implement Green Equipment Orange Medium Yellow Tie-Downs (4) Tie Down Loops Inside Bed Additional Tie Loops Sides 29-3/8″ Tall Sides w/ 24″ V-Crimped Steel Panels (16 Ga.) Storage Bolt-On Landscape Box for (24″ x 24″ x 81-1/2″) Top Rail 2″ x 2″ Square Tubing   MODEL 70TV-12 PULL TYPE Bumperpull GVWR 7000 lbs GAWR (EA. AXLE) 3500 lbs EMPTY WEIGHT 1665 lbs CARGO CAPACITY 5335 lbs BED LENGTH 12′ BED WIDTH 83″ A 145-1/2″ B 85″ C 60-1/2″ TONGUE LENGTH 44-1/2″   MODEL 70TV-14 PULL TYPE Bumperpull GVWR 7000 lbs GAWR (EA. AXLE) 3500 lbs EMPTY WEIGHT 1755 lbs CARGO CAPACITY 5245 lbs BED LENGTH 14′ BED WIDTH 83″ A 169-1/2″ B 103″ C 66-1/2″ TONGUE LENGTH 44-1/2″   MODEL 70TV-16 PULL TYPE Bumperpull GVWR 7000 lbs GAWR (EA. AXLE) 3500 lbs EMPTY WEIGHT 1845 lbs CARGO CAPACITY 5155 lbs BED LENGTH 16′ BED WIDTH 83″ A 193-1/2″ B 115″ C 78-1/2″ TONGUE LENGTH 44-1/2″   MODEL 70TV-18 PULL TYPE Bumperpull GVWR 7000 lbs GAWR (EA. AXLE) 3500 lbs EMPTY WEIGHT 1935 lbs CARGO CAPACITY 5065 lbs BED LENGTH 18′ BED WIDTH 83″ A 217-1/2″ B 127″ C 90-1/2″ TONGUE LENGTH 44-1/2″
